ACE it never hurts to have a ace up your sleeve
Heelside Ace 2008/2009 snowboard
Gender/Age: Mens • Purpose: All mountain • Shape: Directional
This model seems to be out of stock
On this page: |

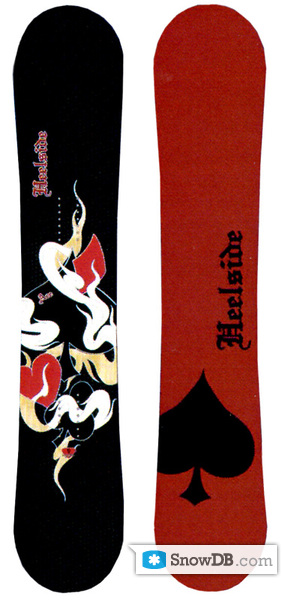

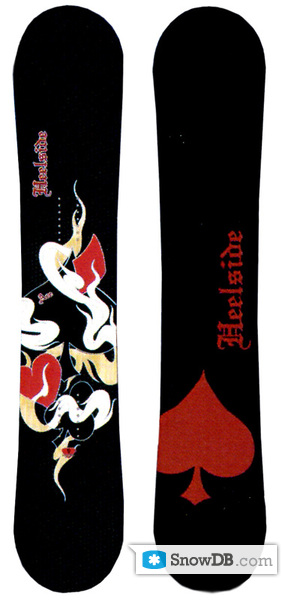

Pictures |
||||||||
|
|||||||||
144 Comparewaist: 242 mm |
148 Comparewaist: 244 mm |
151 Comparewaist: 245 mm |
154 Comparewaist: 248 mm |
158 Comparewaist: 250 mm |
162 Comparewaist: 252 mm |
166 Comparewaist: 254 mm |
155W Comparewaist: 266 mm |
157W Comparewaist: 267 mm |
|
159W Comparewaist: 268 mm |
162W Comparewaist: 270 mm |
167W Comparewaist: 272 mm |
|||||||
Measurements and parameters
Measurements and parameters
| Size, cm | 144 | 148 | 151 | 154 | 158 | 162 | 166 | 155W | 157W | 159W | 162W | 167W |
| Length, mm | 1440 | 1480 | 1510 | 1540 | 1580 | 1620 | 1660 | 1550 | 1570 | 1590 | 1620 | 1670 |
| Effective edge, mm | 1105 | 1132 | 1163 | 1193 | 1233 | 1265 | 1305 | 1195 | 1215 | 1235 | 1275 | 1315 |
| Nose width, mm | 283 | 284 | 286 | 288 | 291 | 294 | 297 | 308 | 309 | 310 | 312 | 318 |
| Waist width, mm | 242 | 244 | 245 | 248 | 250 | 252 | 254 | 266 | 267 | 268 | 270 | 272 |
| Tail width, mm | 283 | 284 | 286 | 288 | 291 | 294 | 297 | 308 | 309 | 310 | 312 | 318 |
| Sidecut radius, mm | 7100 | 7400 | 7600 | 7800 | 8100 | 8300 | 8500 | 7900 | 8000 | 8300 | 8500 | 8800 |
