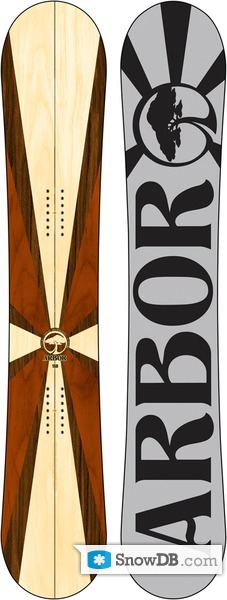

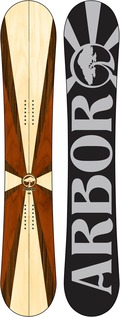

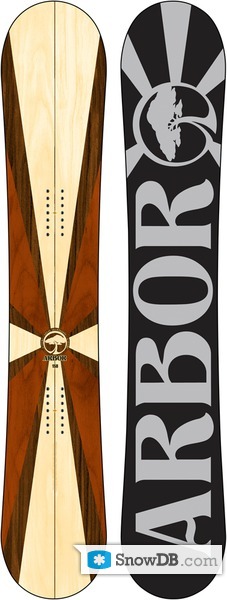

Arbor A-Frame 2011/2012 snowboard

Gender/Age: Mens • Purpose: All mountain • Shape: Directional • Bend: Camber • Base material: Sintered • Convex: No • Price in collection: $$$$$ • Flex in collection: soft ○○○○● stiff • Original flex index: 4

This model seems to be out of stock

On this page: Features and technologies Manufacturer's description Measurements This model in the past Also viewed Tweet	Pictures

	158 Compare waist: 249 mm	162 Compare waist: 251 mm	166 Compare waist: 253 mm	170 Compare waist: 255 mm

Features and technologies

Base	Rocket Base
Collection	Roots Collection
Construction	Shallow Shadow Flex
Core	Shaman Core
Edges	Recycled Steel
Reinforcement	Hi-Load Glassing, Carbon Torsion A-Frames
Sidecut	Standard Progressive
Sidewall	Power Rails
Top sheet	Bio-Film, Wood Power Ply

Manufacturer's description

Arbor’s big-mountain gun for riders who want superior on-edge performance; the A-frame will lock-and-hold a deeply carved line, provide powerful control in the steeps, and deliver amazing stability at speed. Don’t miss the bamboo Power Rails, which deliver unmatched return.

Measurements and parameters

Size, cm	158	162	166	170
Length, mm	1580	1620	1660	1700
Effective edge, mm	1210	1246	1282	1318
Nose width, mm	294	298	301	305
Waist width, mm	249	251	253	255
Tail width, mm	292	296	299	303
Sidecut radius, mm	9000, 8100	9200, 8300	9400, 8500	9600, 8700
Stance width, mm	540	540	540	540
Setback, mm	20	20	20	20
Rider's weight, kg	57-93	61-97	64-101	68-104
